Product Name

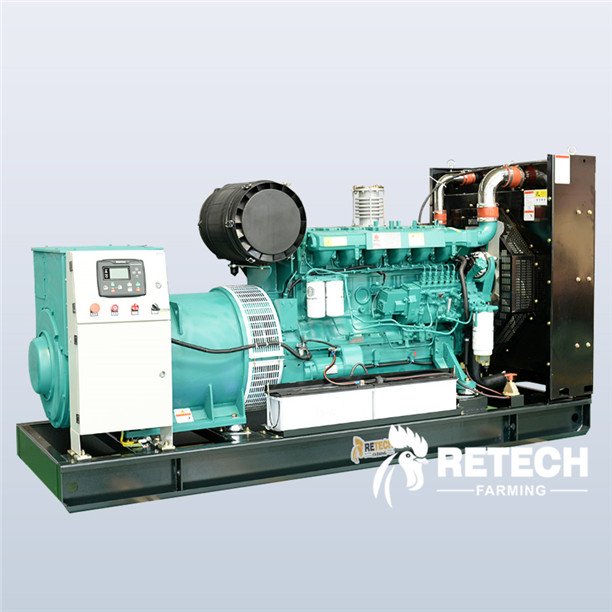

Diesel Electric Generator Unit

Applicable Industries

Poultry Farms

Use

Chicken

Life Time

30 Years

Competitive Advantage

Stable performance. Silent operation. Smart control. Fast, reliable after-sales support.

Product Details

High-Quality and Reliable

Long 30-Year Service Life

Silent Operation

Intelligent and Safe

User-Friendly Design

Easy to Use and Maintain

Fast and Responsive After-Sales

Product Configuration

Technical Parameters

Configuration Details

HQ40GF

HQ60GF

HQ80GF

HQ100GF

Diesel Engine

48KW

66KW

100KW

108KW

Generator

HQF-40
All Copper Brushless

HQF-60
All Copper Brushless

HQF-80
All Copper Brushless

HQF-100
All Copper Brushless

Starter Accumulator

1pc

2pcs

2pcs

2pcs

Starter Motor

12V

24V

24V

24V

Configuration Details
(Applicable to HQ40GF, HQ60GF, HQ80GF, and HQ100GF Generator Sets)

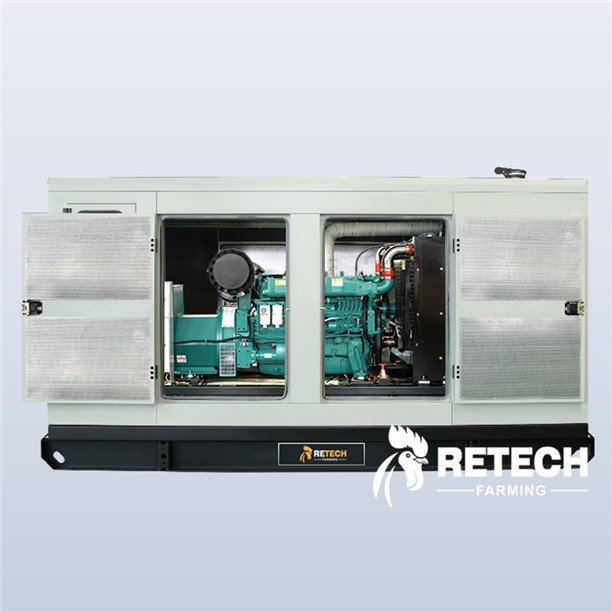

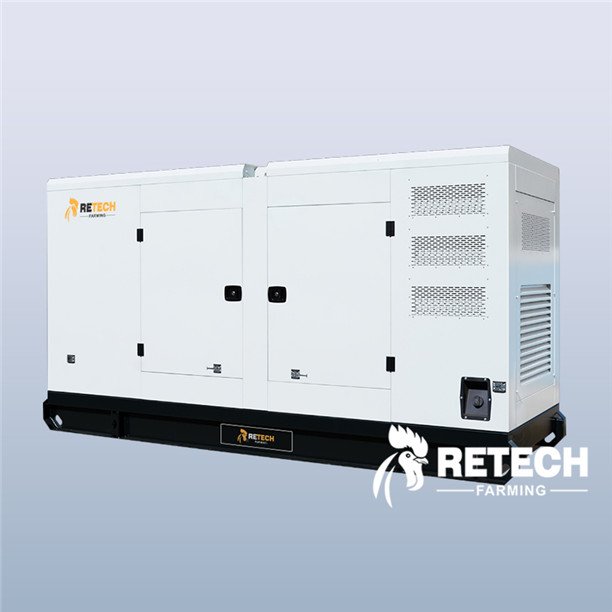

Sound Attenuated Enclosure

1

Charging generator

1 set

Base Fuel Box

1

Air Filter

1 set

Electric Actuator

1

Fuel Filter

1 set

Battery Connection Wire

2 pcs

Oil Filter

1 set

Onboard Data

1 set

Diesel Engine Fan

1

Simple Repair Tools

1

Water Tank with Fan

1

Damping System

1 set

Battery Float Charger

1

Communal Base

1

Machine with Charger

1

Water Tank Radiator

1

Muffler Elbow Bellows

1 set

Coupling

1 set

Water Tank Radiator

1

Product Parameters

Unit Model

HQ40GF

HQ60GF

HQ80GF

HQ100GF

Overall Dimension (L×W×H mm):

1600 *700 *950

1600 *720 *1000

2100 *800 *1400

2100 *800 *1400

Sound Attenuated Enclosure Dimension (L×W×H mm):

2400 *940 *1570

2300 *1000 *1600

2900 *1050 *1700

2900 *1050 *1700

Unit Weight

450kg

1300kg

1460kg

1824kg

Noise

95dB(A)

75dB(A)

75dB(A)

75dB(A)

Fuel Consumption (100% load)

≤210g/kW·h

≤210g/kW·h

≤204g/kW·h

≤204g/kW·h

Output Power

40KW

60KW

80KW

100KW

Output Current

72A

108A

144A

180A

Output Voltage

400V/230V/440V(can be customized)

Power Factor

COSΦ=0.8( lag)

Rated Frequency

50Hz/60HZ(can be customized)

Rated Speed

1500rpm

Fuel Grade

(Standard) 0# light diesel (ordinary temperature)

Steady-State Voltage Regulation Rate

≤±1%

Voltage Fluctuation

≤±0.5%

Transient Voltage Regulation Rate

+20%~-15%

Voltage Stabilization Time

≤1 S

Steady-State Frequency Regulation Rate

≤0.6%

Frequency Fluctuation

≤±0.5%

Transient Fluctuation Regulation Rate

+10%~-7%

Frequency Stabilization Time

≤3 S
